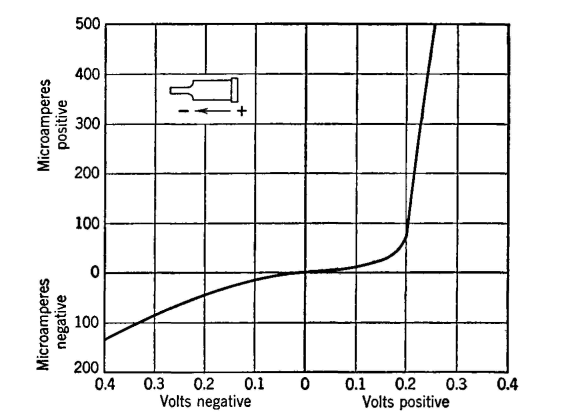

Copper - Copper Oxide RectifiersCopper oxide rectifiers2 consist of copper disks or plates on which a layer of cuprous oxide is formed by a controlled heating process.2,3 Current (conventional) flows readily front the oxide to the copper, but the resistance is very high in the reverse direction Considerable capacitance exists at the thin rectifying interface between the copper and the oxide.
Various advanced theories have been presented2 to explain the operation of the copper oxide rectifier, as it is commonly called. From a practical viewpoint it may be considered that the metallic copper contains many free electrons, and hence, when the oxide is made positive, electrons flow readily from the copper to the oxide.
When the polarity is reversed, negligible current flows because the oxide is a poor conductor and contains few free electrons. Because the cuprous oxide is a poor conductor, a current-distributing electrode must be placed on it. In some rectifiers nickel is electroplated on the surface of the cuprous oxide. Copper oxide rectifiers are often called varistors, particularly in communication.
|
|||||
