# Resistance Laws

Author: J.B. Hoag

The same opposition to the flow of water through a series of pipes of large and small diameter can be attained by a single pipe of proper size. So also, a single resistance can be found in electrical circuits which is the equivalent of a combination of several resistances in series with each other. Instead of connecting the pipes or the resistances in series with each other, they might be joined in parallel, or in more complex series and parallel combinations. In all cases, however, they can be replaced by a single, equivalent unit. The laws for a number of typical circuits are given in Figs. 2 A through 2 E.

 Fig. 2 A. For resistances in series

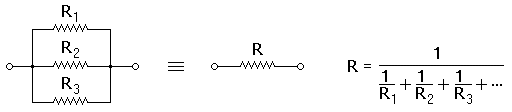

 Fig. 2 B. For resistances in parallel

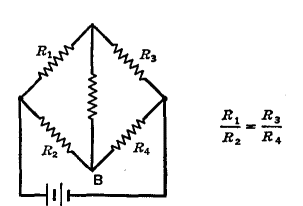

 Fig. 2 C. For no current flow from A to B

 Fig. 2 D. For shunts, the current i is given by the equation above

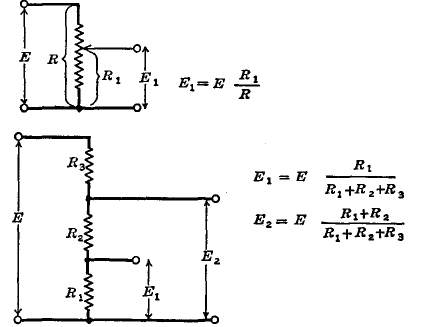

 Fig. 2 E. For voltage dividers

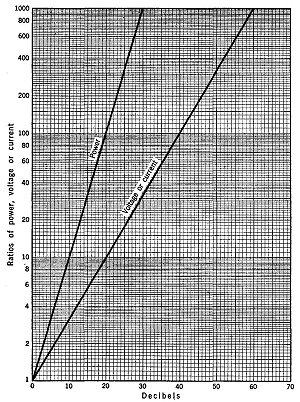

 Fig. 2 F. A decibel chart (click on the image to get a closer view)
