A Simple Audio Oscillator

Author: J.B. Hoag

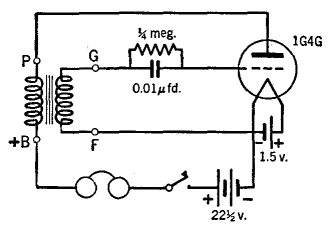

Fig. 14 J. A simple audio frequency oscillator

Figure 14 J shows a simple oscillator which may be used for code practice. In order to have sufficient inductance to produce an audio frequency, an iron core transformer such as used in audio transformer-coupled amplifiers is hooked up as shown.
