Tuned Amplifiers

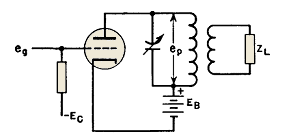

Figure 104 shows the circuit for an amplifier in which the output voltage appears across a parallel-tuned circuit. This circuit is shown coupled to a load ZL. This type of amplifier may be used where large outputs are required, but the voltage ep is not necessarily a reproduction of eg, and they are not related as in equation 58.
|
|||
