Impedance transformationStanding waves at the resonant frequency points of an open or shortcircuited transmission line produce unusual effects. When the signal frequency is such that exactly 1/2 wave or some multiple thereof matches the line's length, the source "sees" the load impedance as it is. The following pair of illustrations shows an opencircuited line operating at 1/2 and 1 wavelength frequencies:

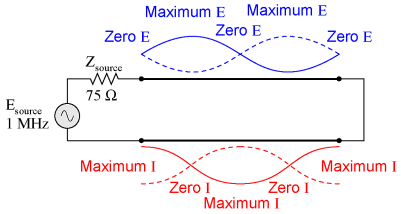

In either case, the line has voltage antinodes at both ends, and current nodes at both ends. That is to say, there is maximum voltage and minimum current at either end of the line, which corresponds to the condition of an open circuit. The fact that this condition exists at both ends of the line tells us that the line faithfully reproduces its terminating impedance at the source end, so that the source "sees" an open circuit where it connects to the transmission line, just as if it were directly opencircuited. The same is true if the transmission line is terminated by a short: at signal frequencies corresponding to 1/2 wavelength or some multiple thereof, the source "sees" a short circuit, with minimum voltage and maximum current present at the connection points between source and transmission line:
However, if the signal frequency is such that the line resonates at 1/4 wavelength or some multiple thereof, the source will "see" the exact opposite of the termination impedance. That is, if the line is opencircuited, the source will "see" a shortcircuit at the point where it connects to the line; and if the line is shortcircuited, the source will "see" an open circuit:

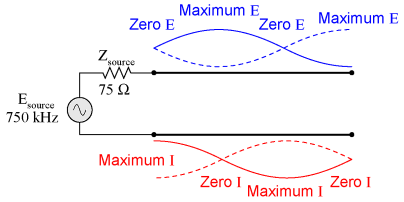

Line opencircuited; source "sees" a short circuit:

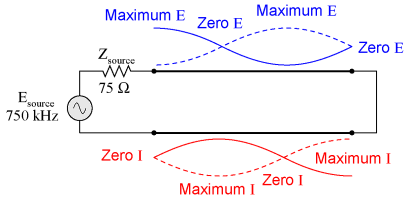

Line shortcircuited; source "sees" an open circuit:

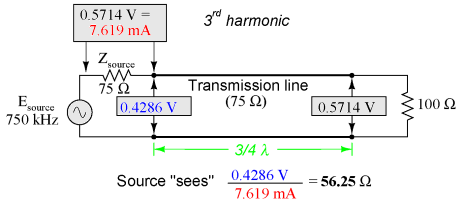

At these frequencies, the transmission line is actually functioning as an impedance transformer, transforming an infinite impedance into zero impedance, or vice versa. Of course, this only occurs at resonant points resulting in a standing wave of 1/4 cycle (the line's fundamental, resonant frequency) or some odd multiple (3/4, 5/4, 7/4, 9/4 . . .), but if the signal frequency is known and unchanging, this phenomenon may be used to match otherwise unmatched impedances to each other. Take for instance the example circuit from the last section where a 75 Ω source connects to a 75 Ω transmission line, terminating in a 100 Ω load impedance. From the numerical figures obtained via SPICE, let's determine what impedance the source "sees" at its end of the transmission line at the line's resonant frequencies:

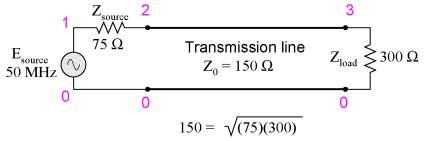

A simple equation relates line impedance (Z_{0}), load impedance (Z_{load}), and input impedance (Z_{input}) for an unmatched transmission line operating at an odd harmonic of its fundamental frequency: One practical application of this principle would be to match a 300 Ω load to a 75 Ω signal source at a frequency of 50 MHz. All we need to do is calculate the proper transmission line impedance (Z_{0}), and length so that exactly 1/4 of a wave will "stand" on the line at a frequency of 50 MHz. First, calculating the line impedance: taking the 75 Ω we desire the source to "see" at the sourceend of the transmission line, and multiplying by the 300 Ω load resistance, we obtain a figure of 22,500. Taking the square root of 22,500 yields 150 Ω for a characteristic line impedance. Now, to calculate the necessary line length: assuming that our cable has a velocity factor of 0.85, and using a speedoflight figure of 186,000 miles per second, the velocity of propagation will be 158,100 miles per second. Taking this velocity and dividing by the signal frequency gives us a wavelength of 0.003162 miles, or 16.695 feet. Since we only need onequarter of this length for the cable to support a quarterwave, the requisite cable length is 4.1738 feet. Here is a schematic diagram for the circuit, showing node numbers for the SPICE analysis we're about to run: We can specify the cable length in SPICE in terms of time delay from beginning to end. Since the frequency is 50 MHz, the signal period will be the reciprocal of that, or 20 nanoseconds (20 ns). Onequarter of that time (5 ns) will be the time delay of a transmission line onequarter wavelength long:
Transmission line v1 1 0 ac 1 sin rsource 1 2 75 t1 2 0 3 0 z0=150 td=5n rload 3 0 300 .ac lin 1 50meg 50meg .print ac v(1,2) v(1) v(2) v(3) .end freq v(1,2) v(1) v(2) v(3) 5.000E+07 5.000E01 1.000E+00 5.000E01 1.000E+00
At a frequency of 50 MHz, our 1volt signal source drops half of its voltage across the series 75 Ω impedance ( Bear in mind, of course, that this only works for 50 MHz and its oddnumbered harmonics. For any other signal frequency to receive the same benefit of matched impedances, the 150 Ω line would have to lengthened or shortened accordingly so that it was exactly 1/4 wavelength long. Strangely enough, the exact same line can also match a 75 Ω load to a 300 Ω source, demonstrating how this phenomenon of impedance transformation is fundamentally different in principle from that of a conventional, twowinding transformer: Transmission line v1 1 0 ac 1 sin rsource 1 2 300 t1 2 0 3 0 z0=150 td=5n rload 3 0 75 .ac lin 1 50meg 50meg .print ac v(1,2) v(1) v(2) v(3) .end freq v(1,2) v(1) v(2) v(3) 5.000E+07 5.000E01 1.000E+00 5.000E01 2.500E01
Here, we see the 1volt source voltage equally split between the 300 Ω source impedance ( This technique of impedance matching is often used to match the differing impedance values of transmission line and antenna in radio transmitter systems, because the transmitter's frequency is generally wellknown and unchanging. The use of an impedance "transformer" 1/4 wavelength in length provides impedance matching using the shortest conductor length possible.
