Seriesparallel R, L, and CSeriesparallel analysis Analysis, seriesparallelNow that we've seen how series and parallel AC circuit analysis is not fundamentally different than DC circuit analysis, it should come as no surprise that seriesparallel analysis would be the same as well, just using complex numbers instead of scalar to represent voltage, current, and impedance. Take this seriesparallel circuit for example: The first order of business, as usual, is to determine values of impedance (Z) for all components based on the frequency of the AC power source. To do this, we need to first determine values of reactance (X) for all inductors and capacitors, then convert reactance (X) and resistance (R) figures into proper impedance (Z) form:
Now we can set up the initial values in our table: Being a seriesparallel combination circuit, we must reduce it to a total impedance in more than one step. The first step is to combine L and C_{2} as a series combination of impedances, by adding their impedances together. Then, that impedance will be combined in parallel with the impedance of the resistor, to arrive at another combination of impedances. Finally, that quantity will be added to the impedance of C_{1} to arrive at the total impedance. In order that our table may follow all these steps, it will be necessary to add additional columns to it so that each step may be represented. Adding more columns horizontally to the table shown above would be impractical for formatting reasons, so I will place a new row of columns underneath, each column designated by its respective component combination: Calculating these new (combination) impedances will require complex addition for series combinations, and the "reciprocal" formula for complex impedances in parallel. This time, there is no avoidance of the reciprocal formula: the required figures can be arrived at no other way! Seeing as how our second table contains a column for "Total," we can safely discard that column from the first table. This gives us one table with four columns and another table with three columns. Now that we know the total impedance (818.34 Ω58.371^{o}) and the total voltage (120 volts0^{o}), we can apply Ohm's Law (I=E/Z) vertically in the "Total" column to arrive at a figure for total current:
At this point we ask ourselves the question: are there any components or component combinations which share either the total voltage or the total current? In this case, both C_{1} and the parallel combination R//(L
Now, we can calculate voltage drops across C_{1} and the seriesparallel combination of R//(L
A quick doublecheck of our work at this point would be to see whether or not the voltage drops across C_{1} and the seriesparallel combination of R//(L That last step was merely a precaution. In a problem with as many steps as this one has, there is much opportunity for error. Occasional crosschecks like that one can save a person a lot of work and unnecessary frustration by identifying problems prior to the final step of the problem.

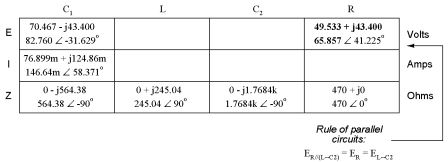

After having solved for voltage drops across C_{1} and the combination R//(L
Now we're all set for calculating current through the resistor and through the series combination L
Another quick doublecheck of our work at this point would be to see if the current figures for L Since the L and C_{2} are connected in series, and since we know the current through their series combination impedance, we can distribute that current figure to the L and C_{2} columns following the rule of series circuits whereby series components share the same current: With one last step (actually, two calculations), we can complete our analysis table for this circuit. With impedance and current figures in place for L and C_{2}, all we have to do is apply Ohm's Law (E=IZ) vertically in those two columns to calculate voltage drops. Now, let's turn to SPICE for a computer verification of our work:
ac seriesparallel rlc circuit v1 1 0 ac 120 sin vit 1 2 ac 0 vilc 3 4 ac 0 vir 3 6 ac 0 c1 2 3 4.7u l 4 5 650m c2 5 0 1.5u r 6 0 470 .ac lin 1 60 60 .print ac v(2,3) vp(2,3) i(vit) ip(vit) .print ac v(4,5) vp(4,5) i(vilc) ip(vilc) .print ac v(5,0) vp(5,0) i(vilc) ip(vilc) .print ac v(6,0) vp(6,0) i(vir) ip(vir) .end freq v(2,3) vp(2,3) i(vit) ip(vit) C1 6.000E+01 8.276E+01 3.163E+01 1.466E01 5.837E+01 freq v(4,5) vp(4,5) i(vilc) ip(vilc) L 6.000E+01 1.059E+01 1.388E+02 4.323E02 1.312E+02 freq v(5) vp(5) i(vilc) ip(vilc) C2 6.000E+01 7.645E+01 4.122E+01 4.323E02 1.312E+02 freq v(6) vp(6) i(vir) ip(vir) R 6.000E+01 6.586E+01 4.122E+01 1.401E01 4.122E+01 Each line of the SPICE output listing gives the voltage, voltage phase angle, current, and current phase angle for C_{1}, L, C_{2}, and R, in that order. As you can see, these figures do concur with our handcalculated figures in the circuit analysis table. As daunting a task as seriesparallel AC circuit analysis may appear, it must be emphasized that there is nothing really new going on here besides the use of complex numbers. Ohm's Law (in its new form of E=IZ) still holds true, as do the voltage and current Laws of Kirchhoff. While there is more potential for human error in carrying out the necessary complex number calculations, the basic principles and techniques of seriesparallel circuit reduction are exactly the same.
