The only offering in our roundup that is available for Linux, the GNU Image Manipulation Program, is also unique in that it may be obtained for free, with complete source code, if desired. Originally written for Unix and the X Window System, the GIMP (or Gimp) is also being ported to OS/2 and 32-bit Windows.[27] I tested version 1.0.2, the latest nondevelopment release as of this writing, under Linux 2.0. PNG support is handled via a plug-in with its own release schedule, though. A considerably improved version (1.1.7) was released in late February 1999, after my tests; I'll note its changes as we go.

[27] Not only that, but the Windows port even runs under the Windows emulator WINE, making it one of the few large applications that can be run simultaneously as a native Linux application and as an emulated Windows program. Of course, that would be a fairly twisted thing to do.

Like Photoshop, the GIMP uses a modal approach to the basic image types, requiring an explicit conversion between RGB, grayscale, and indexed-color images. Both alpha channels and gamma correction are supported, albeit at a relatively basic level; I'll discuss the details shortly. Currently, the standard GIMP release does not support sample depths greater than 8 bits, but a separate development fork known as GIMP16 (or informally as ``Hollywood'') has extended the GIMP's core to operate on deep pixels and is expected to merge with the main development fork in the 2.0 time frame. There was no support for text annotations in the stock 1.0.2 release, but version 1.1.7 of the PNG plug-in appears to have added support for user-specified Title, Author, Description, Copyright, Creation Time, Disclaimer, Warning, Source, and Comment keywords; the Software keyword is added automatically. The newer plug-in release also supports timestamps via PNG's tIME chunk (described in Chapter 11, "PNG Options and Extensions").

The GIMP employs Photoshop's layer-based editing model and in general will be familiar to anyone comfortable with Photoshop. The user interface does differ in one significant respect, however: instead of a large parent window with a main menu bar and various child windows inside, the GIMP uses separate, standalone windows for everything, and the functions corresponding to Photoshop's main menu are instead accessible via the righthand mouse button. At its most minimal, the GIMP consists only of the small tool-palette window, which contains a truncated File menu from which one can create a new image or open an existing file.

Conveniently enough, that leads us directly into our portrait example:

  1. Choose FileOpen and select an appropriate truecolor image.

  2. Click the right mouse button over the image and select LayersAdd Alpha Channel, after which the titlebar will indicate (RGB-alpha) instead of just (RGB).

  3. Click on the Lasso tool (upper right corner of the tool palette).

  4. Hold the right mouse button and choose DialogsTool Options....

  5. Click on the Feather checkbox and set the Feather Radius slider to some value, perhaps 25.

  6. Draw a loop around the face of the subject.

  7. Invert the lasso selection: hold the right button and choose SelectInvert.

  8. Erase everything outside the loop: hold the right button and choose EditClear.

Aside from the use of the right mouse button instead of a menu bar, the procedure is almost identical to that in each of the other applications I've investigated. Note that the GIMP's feathering extends to both sides of the lassoed path, much as ImageReady's does. Unlike ImageReady, however (but similar to Fireworks), GIMP's ``radius'' appears to indicate the total width of the alpha band, not just half of it. The Lasso options box, the tool palette, and the main image window are shown overlapped in Figure 4-9. (Ordinarily, the first two float elsewhere on the desktop.)

To save the image as a 32-bit RGBA PNG, bring up the Save as dialog:

  1. Hold the right mouse button and choose FileSave as.

  2. Pick an appropriate directory and filename for the image, and either choose PNG explicitly from the drop-down file type list or do so implicitly by typing the .png filename extension.

  3. Click the OK button, which brings up the PNG Options dialog box.

  4. Set the Compression level slider to an appropriate value and optionally check the Interlace checkbox.

  5. Click the OK button.

Figure 4-9

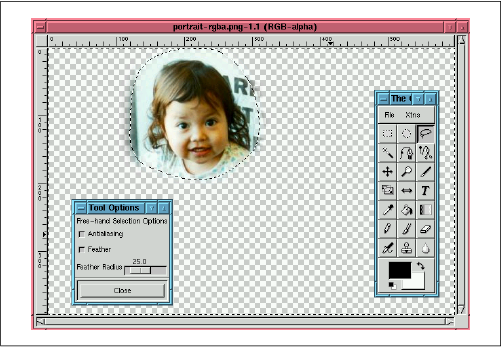

Figure 4-9: The GIMP's Lasso options window, tool palette, and main image window. (Click on image for full-scale version.)

The compression-level slider actually allows noninteger values, but it appears to truncate the fractional part. Thus, for maximum compression, the slider must be set at 9.0 exactly. For typical usage, 6.0 is fine, and for quick saves with decent compression, use 3.0.

Conversion of an RGB image (with or without an alpha channel) to grayscale or to indexed-color is accomplished via the right mouse button's Image submenu, either the Grayscale or Indexed items. Going from 32-bit RGBA to 16-bit gray+alpha is quite fast, and the GIMP saves the result properly as a gray+alpha PNG file. Similarly, converting plain RGB or grayscale to indexed-color mode works well and saves correctly. But conversion of RGBA or gray+alpha to Indexed is problematic with the stock 1.0.2 PNG plug-in. GIMP's internal palette model appears to be GIF-like in that there's no evidence that it supports partial transparency in indexed images; the main image display switches to a hard-edged mask with only fully transparent and fully opaque regions visible. More serious is the fact that even this much transparency results in a truncated file, a core dump (though not a termination of the other GIMP windows), and a pop-up error box indicating that the save failed. Perusal of the older PNG plug-in's source code strongly suggests that transparency support for indexed images was never implemented. Fortunately, Yamahata Kenichiro addressed this in version 1.1.7 of the plug-in, but I did not have a chance to investigate how it works.

Aside from that and a lack of support for text comments, the only other PNG-related problem seems to be in the gamma chunk. Version 1.0.2 of the GIMP has no support for monitor settings or calibration, and in the absence of those, it should assume a PC-like (or sRGB) environment on PCs and most workstations. That is, the gamma value it writes to file should be the inverse of 2.2. But the stock PNG plug-in actually writes 1.0, a value that causes images to appear extremely washed out when viewed with a gamma-aware application (unless the originating machine was a NeXT workstation). Fortunately, the developers addressed this problem within 24 hours of its having been reported, and version 1.1.7 of the PNG plug-in includes the fix (as will the next full release of the GIMP, presumably). Images saved under older versions can be corrected in a batch operation with a tool such as pngcrush. The following example performs a batch correction and puts all of the fixed images into a subdirectory called fixed/:

pngcrush -d fixed -replace_gamma 0.454545 foo.png foo2.png ...

The GIMP's compression of PNG files is excellent, with the program choosing the proper filtering strategies for both palette-based and continuous-tone images. pngcrush, covered in Chapter 5, "Applications: Image Converters", was unable to eke out any improvement in file size beyond that due to eliminating the overhead of multiple image-data chunks, which amounts to a mere 12 bytes per 8,204-byte chunk, or less than 0.15% of the overall file size.

The main GIMP home page is at http://www.gimp.org/, with extensions available from the plug-in registry, http://registry.gimp.org/ (including the PNG plug-in at http://registry.gimp.org/detailview.phtml?plugin=PNG+for+GIMP+1.0/0.99.x). The GIMP16 project has a separate home page at http://film.gimp.org/.
