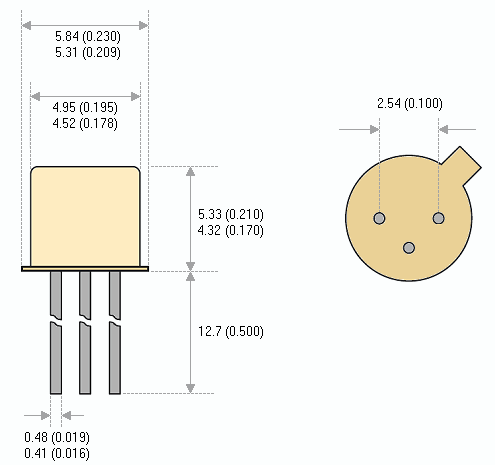

Package TO-18


Dimensions in mm (inch in parantheses)

The TO-18 package is typically used for small signal transistors, i.e. 2N2222, 2N2907, BC109, or BC377
