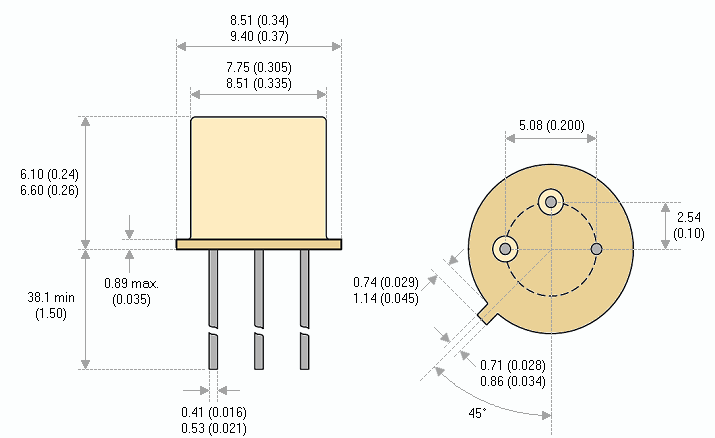

Package TO-5



Dimensions in mm (inch in parantheses)

The TO-5 package is typically used for transistors in the power range between 0.5 and 1 W, e.g. 2N2904L, BCY30A, or BFY50L.
