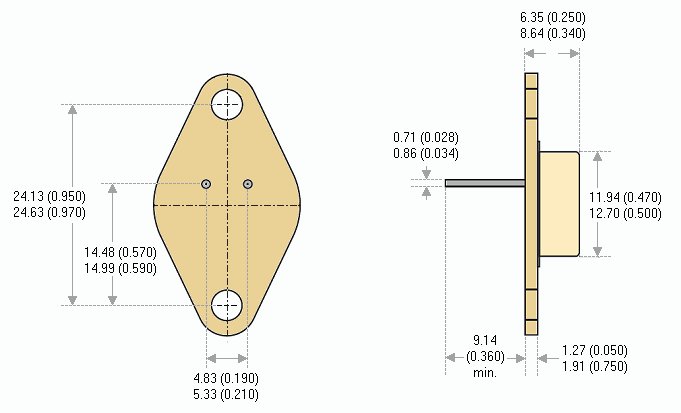

Package TO-66



Dimensions in mm (inch in parantheses)

The TO-66 package is typically used for transistors of medium power, e.g. 2N3054, or BDX14
